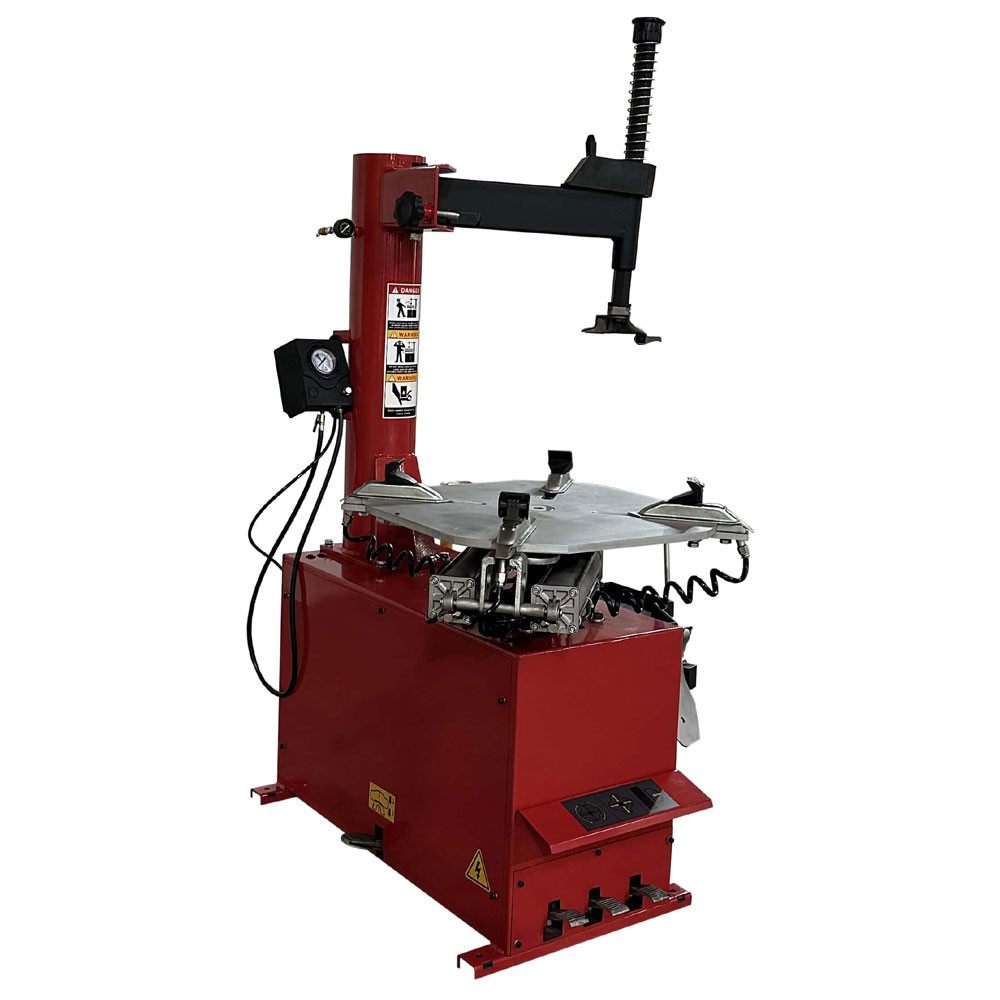

- Swing arm design
- Handles tires up to 38" diameter and rim widths up to 12"
- Bead seating inflation jets are integrated in the clamping jaws insuring quick and safe inflation
- Twin clamping cylinders provide more power to hold the most difficult rims
- No scratching. Machine never contacts rim eliminating accidental damage

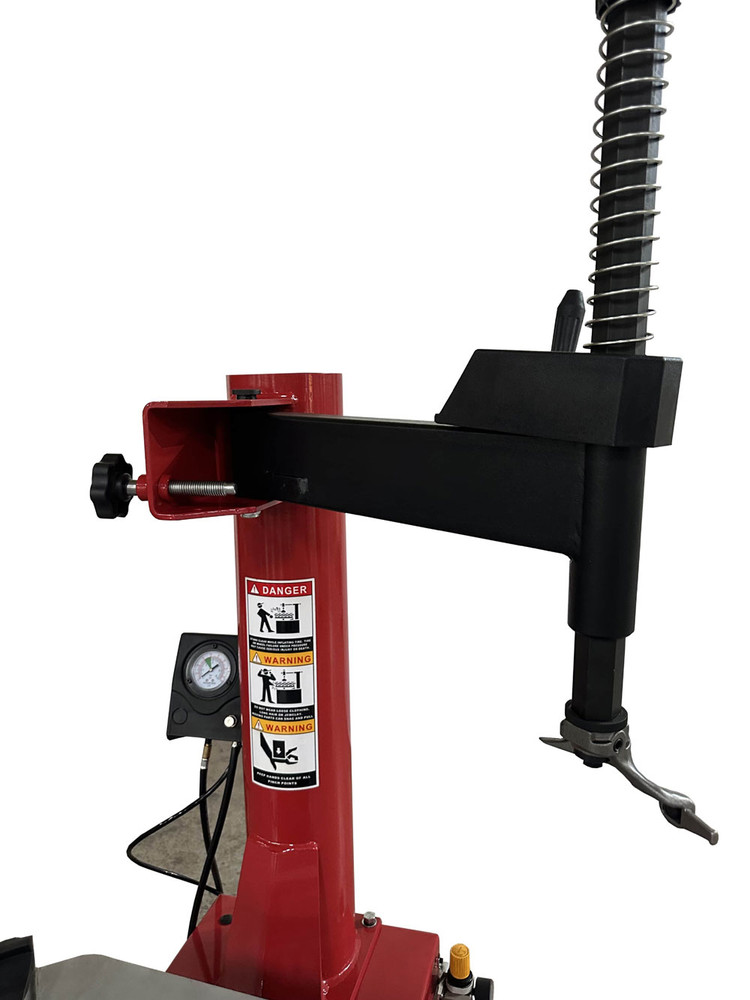

- Large diameter hex mount/demount shaft for extra rigidity
- Manual mount/demount
- Four pneumatic clamps and double acting cylinders

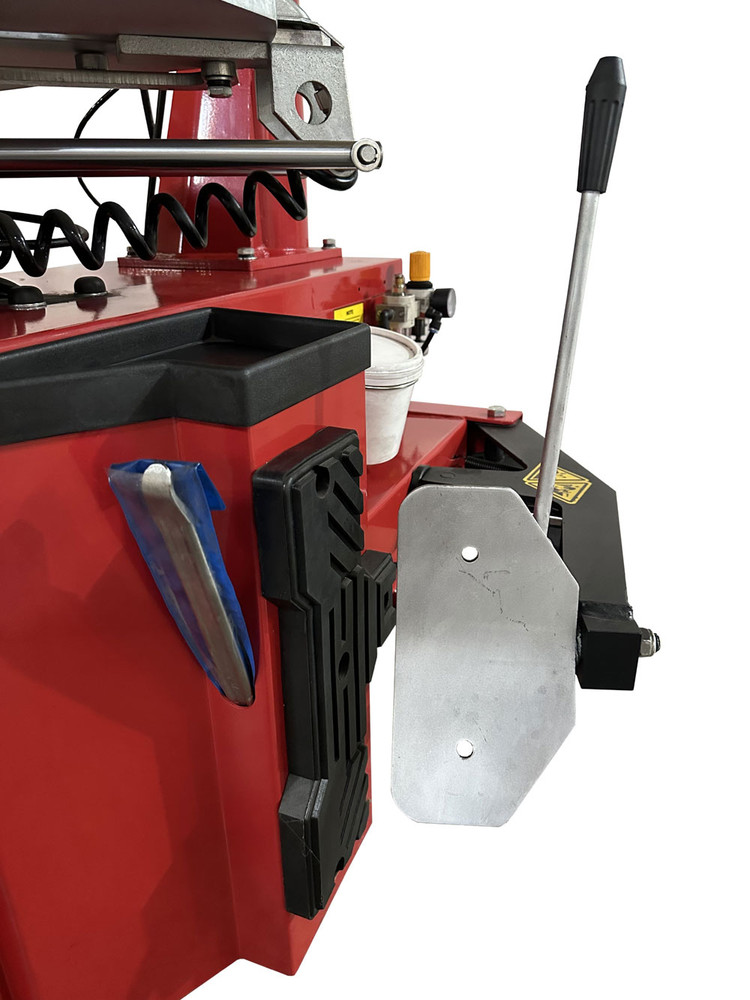

- Side mounted pneumatic bead breaker

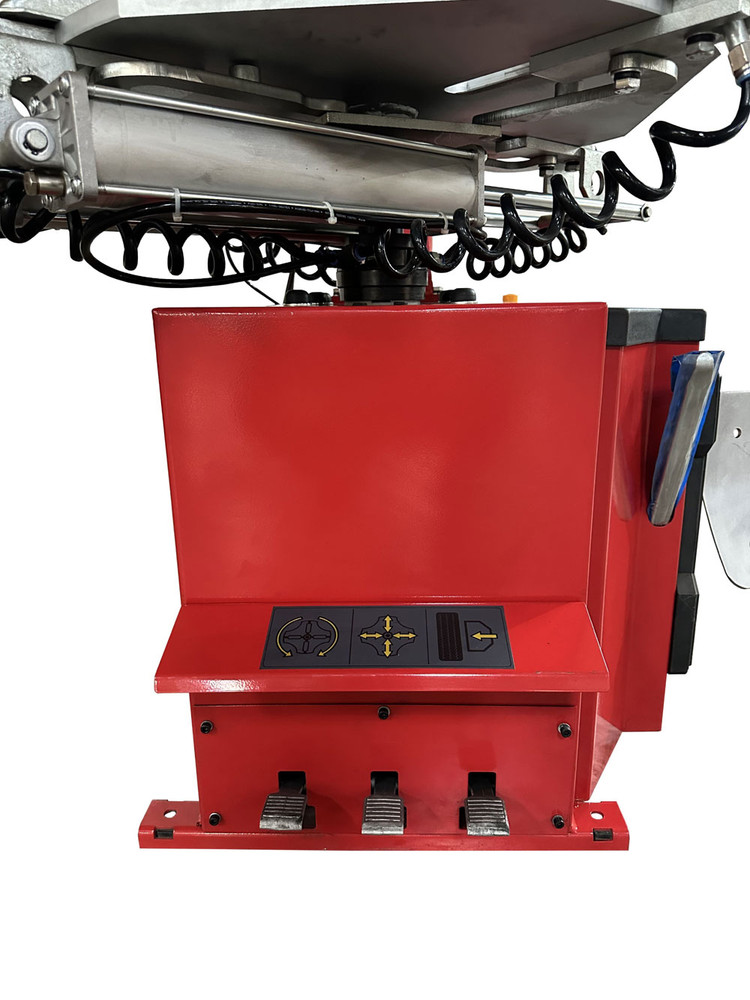

- Foot operated inflation

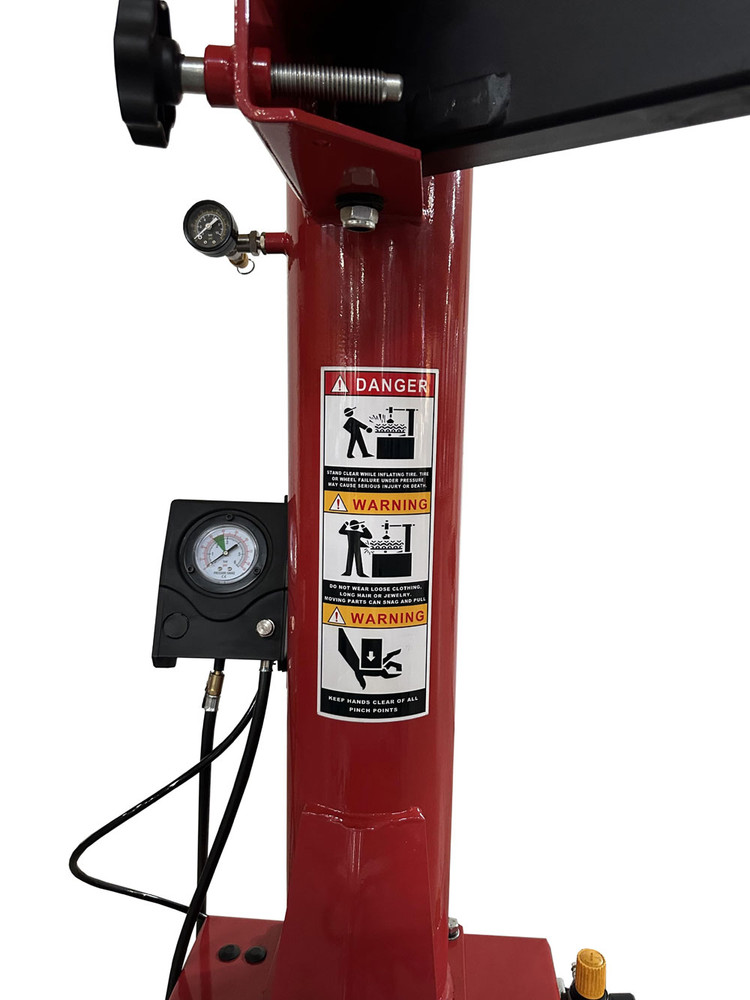

- Tower acts as auxiliary air tank
- Electric table rotation

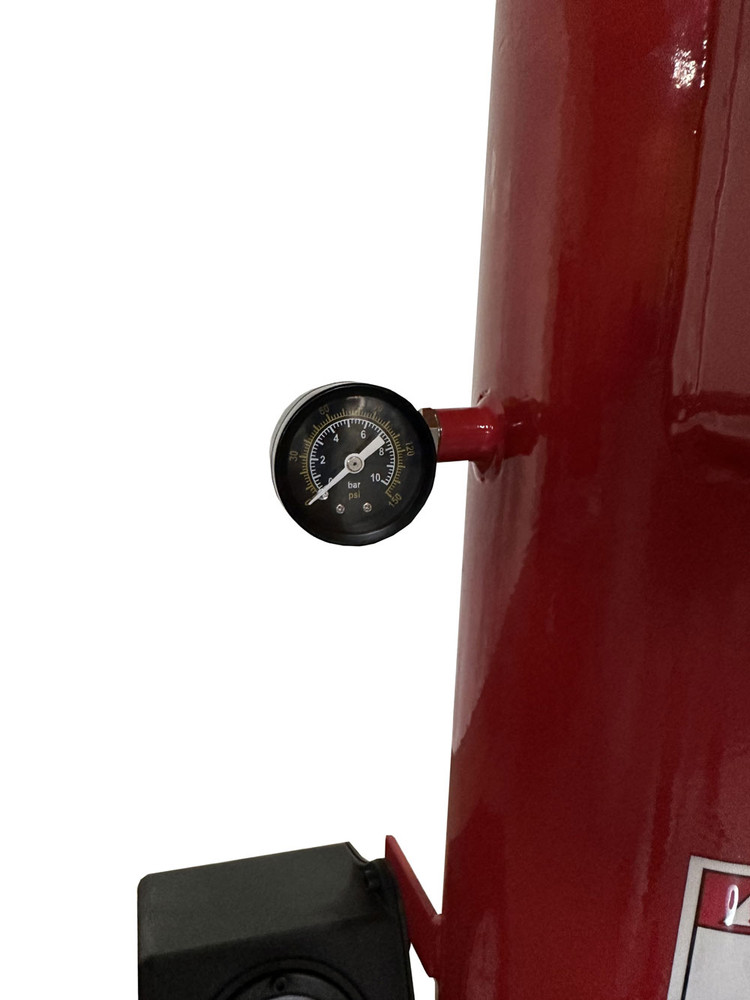

- Includes water separator, lubricator and air pressure regulator
![](https://cdn11.bigcommerce.com/s-y1ixfo6g7s/images/stencil/original/image-manager/tc-530-specs.jpg?t=1705694594)
Click here for Specifications
Click here for Manual
