American Made Paint Booths
Our booths are built with high-quality galvanized steel, UL and CSA-approved components, control panels, LED lights and our fans are AMCA-rated. We design and manufacture in accordance with the industry guidelines to include OSHA, NFPA33, NEC, and BOCA.
Designed with precise ventilation and filtration systems, creating specialized environments for painting and finishing applications, where controlled conditions are essential to achieve professional results.
| Inside Dimensions | 14′ Wide X 9’4″ Tall X 25’9″ Long |
|---|---|
| Outside Dimensions | 18′ Wide X 11’3″ Tall X 26′ Long |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening Dimensions | 9′ Tall X 10′ Wide |
| Main Access Door Opening | 1 Door With Window @ 7′ Tall X 3′ Wide |
| Lighting | 10 @ 4 Tube, 2′ X 4′ LED Fixtures with Glass |
| Exhaust System | (2) 24″ Fans; 2hp 3phase Motor; 15900cfm @ 1/4″S.P. |
| Filtration | 20″ X 20″ Intake Filters & Exhaust Filter Pads |
| Manometer/Draft Gauge, Hardware And Sealants | Included |
| Optimal coating environment | OSHA and NFPA-33 compliant |
| Booth can be customized to any dimensions | Booth can be customized to any dimensions |
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical.
- Local permitting and fire suppression (if required)
Control Panel Overview: Booth Control Panel
Certificate of Compliance: Certificate of Compliance

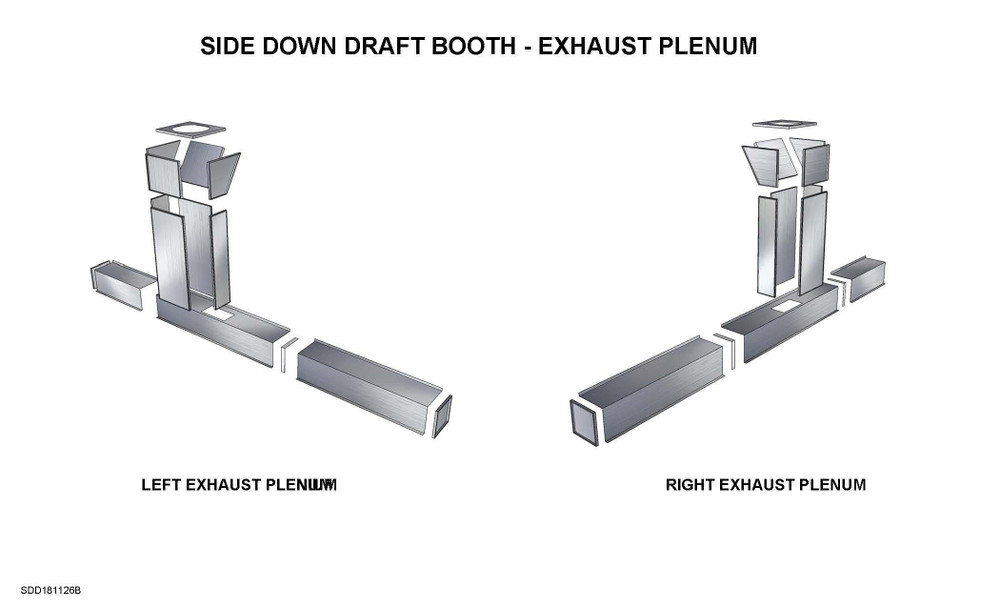

Duct Work Schematic: Ductwork Package
Additional Options:
- Single Phase Motor
- (2) 24″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White Complete Booth
- Control Panel for Lights & Fan
- High-End VFD Control Panel with UL Listed Components
- Converts single-phase to three-phase
- Converts three-phase to three-phase
- Drive Through Doors
