American Made Paint Booths
Our booths are built with high-quality galvanized steel, UL and CSA-approved components, control panels, LED lights and our fans are AMCA-rated. We design and manufacture in accordance with the industry guidelines to include OSHA, NFPA33, NEC, and BOCA.
Designed with precise ventilation and filtration systems, creating specialized environments for painting and finishing applications, where controlled conditions are essential to achieve professional results.
| Inside Dimensions | 14″ Wide X 9’4″ Tall X 25’9″ Long |
|---|---|

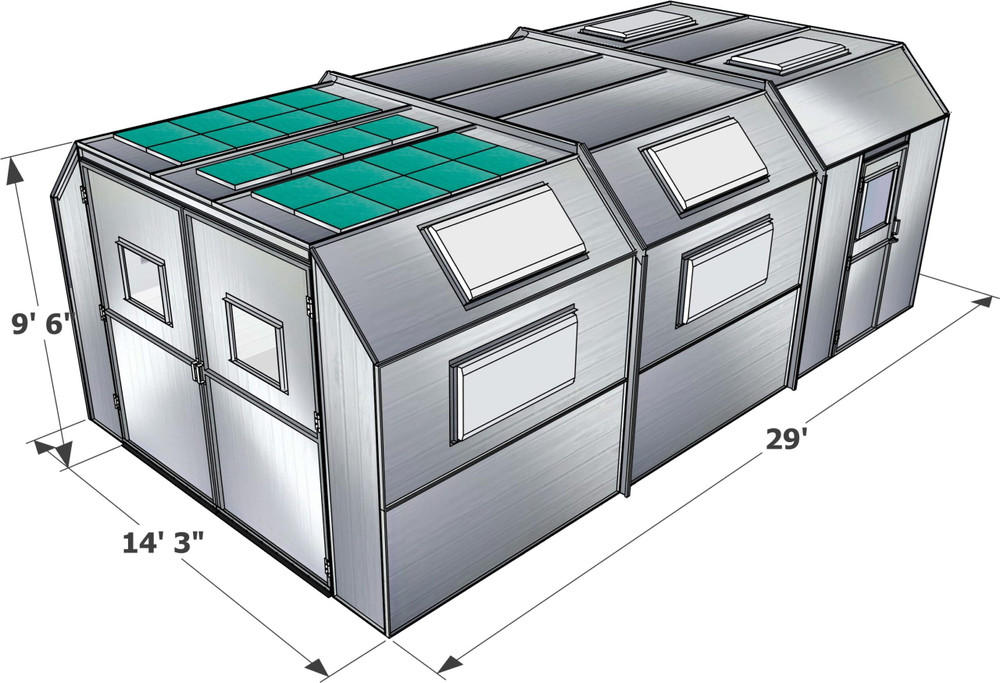

| Outside Dimensions | 15′ Wide X 9’10” Tall X 29′ Long |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening Dimensions | 9′ Tall X 10′ Wide |
| Main Door Access Dimensions | 1 Door With Window @ 7′ Tall X 3′ Wide |
| Lighting | 10 @ 4 Tube, 2′ X 4′, LED Fixtures with Glass |
| Exhaust System | 30″ Dia Tubeaxial Fan; 3 Hp 3 Phase Motor; 12220 CFM @ 1/4″ S.P. |
| Filtration | 20″ X 20″ Intake & Exhaust Filter Pads |
| Manometer/Draft Gauge, Hardware And Sealants | Included |
Customer Responsibilities:
- Offloading of delivery truck
- Construction / Installation to include electrical.
- Local permitting and fire suppression (if required)
Control Panel Overview: Booth Control Panel
Certificate of Compliance: Certificate of Compliance
Duct Work Schematic: Ductwork Package
Additional Options:
- Single Phase Motor
- 30″ Dia X 8′ Long Exhaust Ductwork Package
- Powder Coated Bright White Complete Booth
- Control Panel for Lights & Fan
- High-End VFD Control Panel with UL Listed Components
- Converts single-phase to three-phase
- Converts three-phase to three-phase
- Drive Through Doors
