The dimensions and work strokes ensure maximum efficiency for an entire range of tires. The two-speed rotation chucking table can accommodate rims up to 44” and 56” (with VSG108A12 extensions set). Service Tire Diameters Up to 90″.
- Cable control unit
- Aluminum Adapters Standard
- Rotational control on portable wired stand
- Tire paste lubricant and brush
Features
- Tube and Tubeless Tires

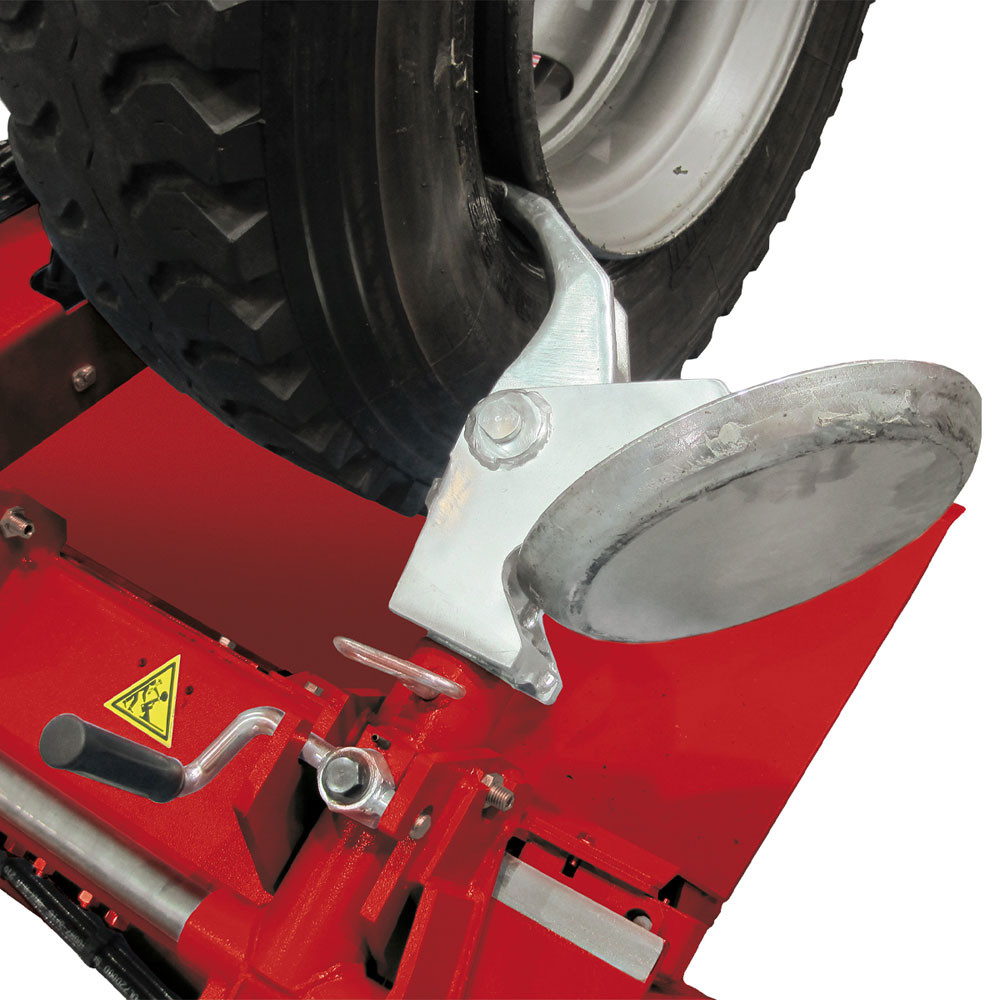

- Hydraulic Arm Movement
- Wired cable control unit inputs.
Specifications
| TECHNICAL DATA | R541 |
| Chucking unit rotation motor | 1.75 Hp / 1-1.3 kW |
| Hydraulic drive unit motor | 2.95 Hp / 2.2 kW |
| Rim diameter | 11”- 43” |
| Maximum tire diameter | 90.5” (2300mm) |
| Maximum tire width | 51” (1300mm) |
| Chuck rotation speed (rev/min) | 4-8 |
| Power Supply | 220v / 3Ø / 60 Hz |
- Free_shipping:
- Free Shipping
- Product Manual/Brochure:
-
Download - Maximum tire diameter:
- 90.5” (2300mm)
- Maximum tire width:
- 51” (1300mm)
- Power Supply:
- 220v / 3Ø / 60 Hz
