The 1065 Wheel Alignment System offers total drive wireless capability. No minimum bay size required so this system is ready to fit in your shop. Take the alignment tablet with you as you make assessments, adjustments and collect the necessary data to get the job done from anywhere in the bay.
STANDARD EQUIPMENT
• 10” Android tablet

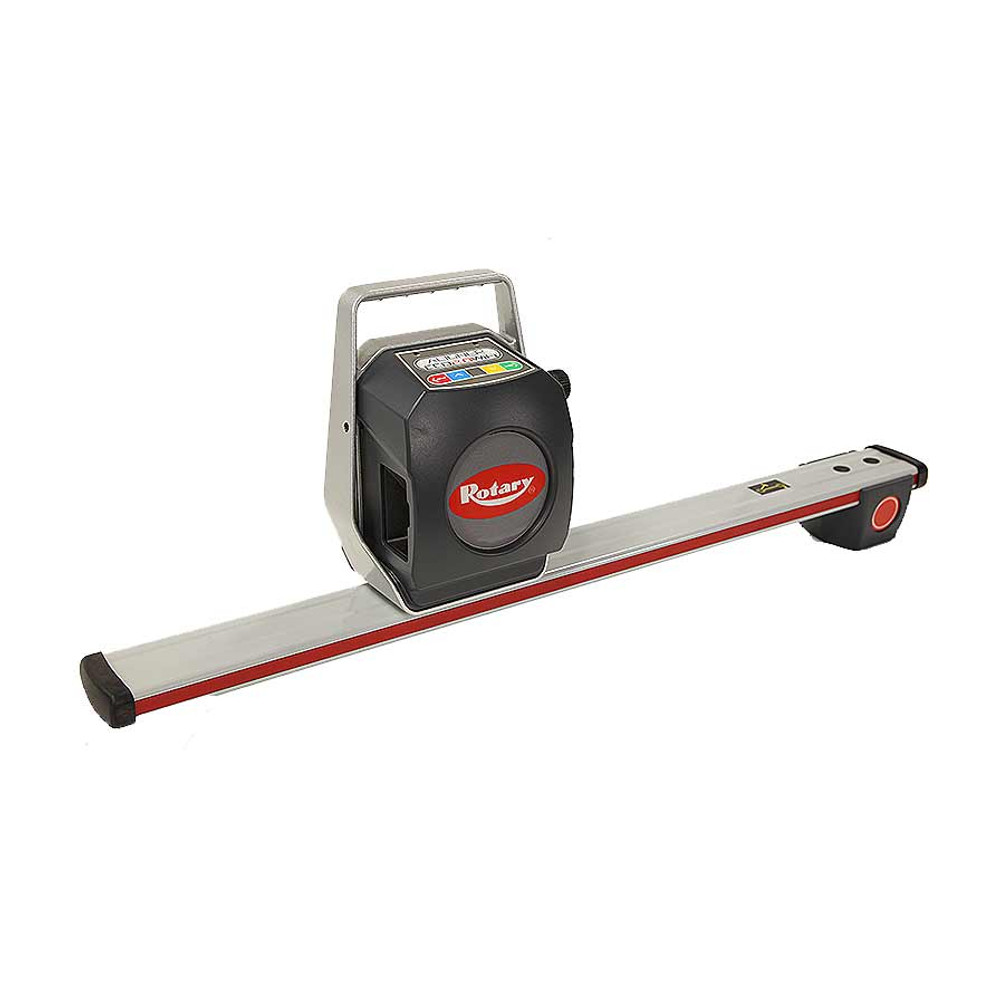

• 8 CCD camera system- 4 sensors with 2 CCD cameras
• 4 STDA33EU 4 point wheel clamps - Self-centering clamps with removable claws.
• 1 brake pedal depressor
• 1 steering wheel lock
• 3-Year parts warranty
• 1-Year labor warranty
Features
- COMPUTER FREE ALIGNMENT SYSTEM - FAST SET UP
No computer software updates required - WIRELESS MEASURING HEADS COMMUNICATE VIA WIFI
No cables or interruptions during alignment process - NO MINIMUM BAY SIZE REQUIRED
Wireless capability with the mobility to move from bay to bay - PERSONALIZED ALIGNMENT REPORT EMAILED TO CUSTOMER
Insures customer satisfaction or print to a local WIFI printer - ACCURATE 2 STEP RUN OUT PROCESS
Tablet tells the operator when to stop, and when to roll forward during the run-out process. - UPDATED ANIMATED INSTRUCTIONS AND GRAPHICS GUIDE THE ALIGNMENT PROCESS
INCLUDES Spoiler Program for lowered vehicles - automatically activated to measure sport and tuned car bodies.
Specifications
R1065 Alignment System Technical Data | Accuracy | Measuring Range | Total Measuring Range |
Front axle | |||
Total toe | + / – 3’ | + / – 2Ëš | + / – 20Ëš |
Partial toe | + / – 1’ 30” | + / – 1Ëš | + / – 20Ëš |
Set-back | + / – 2’ | + / – 2Ëš | + / – 5Ëš |
Camber | + / – 2’ | + / – 3Ëš | + / – 10Ëš |
Caster | + / – 5’ | + / – 10Ëš | + / – 18Ëš |
King-pin | + / – 5’ | + / – 10Ëš | + / – 18Ëš |
Rear axle | |||
Total toe | + / – 3’ | + / – 2Ëš | + / – 20Ëš |
Partial toe | + / – 1’ 30” | + / – 1Ëš | + / – 20Ëš |
Set-back | + / – 2’ | + / – 2Ëš | + / – 5Ëš |
Camber | + / – 2’ | + / – 3Ëš | + / – 10Ëš |
Thrust angle | + / – 2’ | + / – 2Ëš | + / – 5Ëš |
Power supply | 110v / 1Ø / 60 Hz |
- Free_shipping:
- Free Shipping
- Product Manual/Brochure:
- Download
- Power supply:
- 110v / 1Ø / 60 Hz
