Mahle ArcticPRO ACX2280 R1234yf Refrigerant Handling System

$7,179.00
Free_shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
#460 80449 00
Availability:
Usually ships in 5-10 Business Days

Click here to download Brochure

FEATURES

  • State-of-the-art, ergonomic design, 7" capacitive touch screen and intuitive user interface sets a new industry standard.

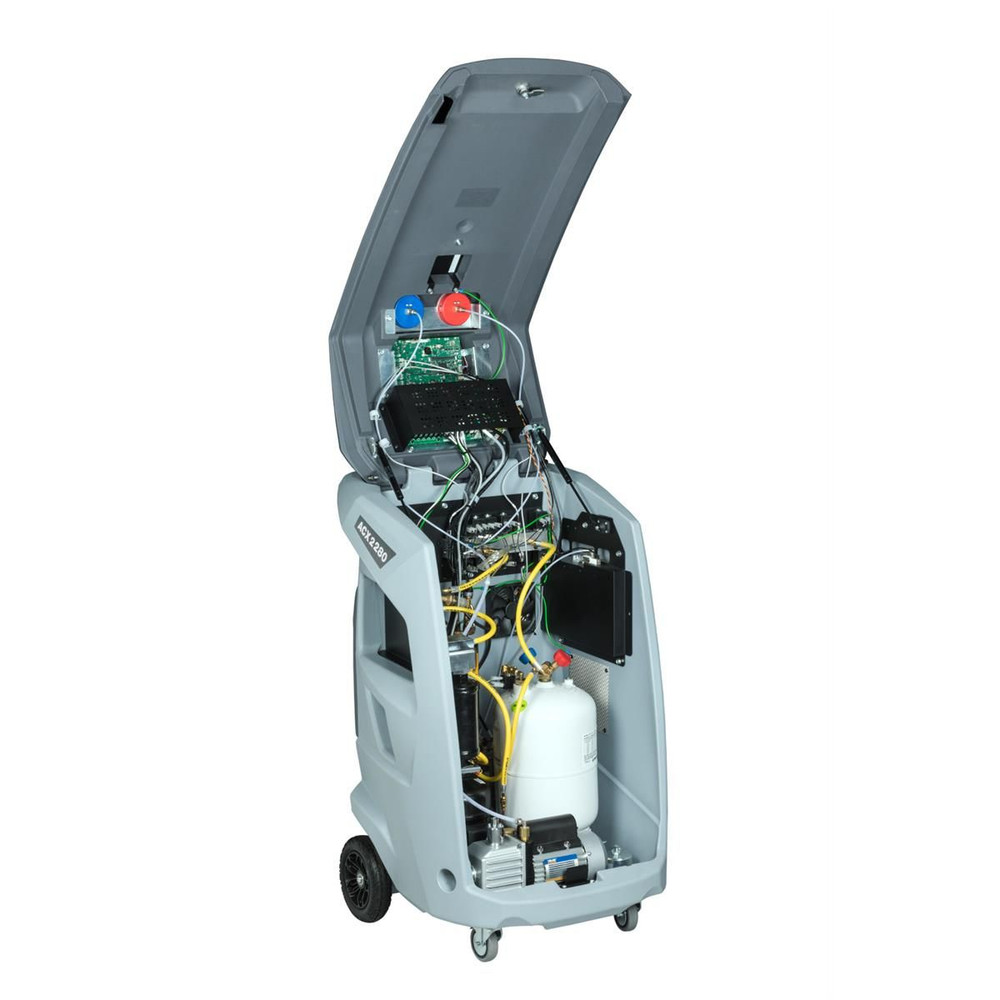

  • New ergonomic hinged service door simplifies unit service.
  • LED light indicates status visible from anywhere in the workshop.
  • iOS and Android capable phone app allows remote service session mirroring and advanced functions.
  • Permanent, automatic wireless software updates, ensuring you always have the latest features.
  • Oil management system automatically weighs recovered oil, allowing accurate replenishment of oil removed during service.
  • Offers remote support capabilities that allow MAHLE technicians to connect to a unit over WiFi for troubleshooting and advanced support.
  • Data management and reporting capabilities provide the ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
  • An integrated refrigerant identifier adds additional convenience and saves time on services.
  • Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage.
  • The unit retains valuable service records, providing network printing capability to print services provided for customer.

OPTIONAL FEATURE

  • Optional thermal printer allows printing of service reports.

Product Specifications

Certifications SAE J2843, SAE J2888, UL 1963

Charge Performance +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C)

Recovery Performance 95% at 70° to 75°F (21° to 24°C) within 30 minutes

Operation Fully Automatic

Charging Cylinder 30 lb. (13.6 kg) DOT

Compressor 3/8 HP-0.279kW

Dimensions (H x W x D) 47 in x 29 in x 29 in (119 cm x 74 cm x 74 cm)

Weight 215 lb. (98 kg)

Display Color, 7” Capacitive Touch Screen

Filter Drier Capacity 200 lb. (91 kg) spin-on type

Hoses 9 ft. (2.75 m)

Hybrid Function Certified

Languages English, French, Spanish

Operating Ranges 50 degrees - 122 degrees F (10° to 50°C)

Power Source 120 VAC - 60 HZ - 12 AMP

Vacuum Pump 1.8 CFM dual stage

Warranty 1 Year Labor, 2 Years Parts
