- INNOVATIVE ‘FRAME ENGAGING’ LIFT DESIGN, ALLOWING FOR WHEEL & SUSPENSION
SERVICE FOR THE LARGEST UTILITY & ALL-TERRIAN POWER SPORT VEHICLES. - LOAD BEARING ‘FLIP-UP’ PLATFORM EXTENSIONS FOR THE LARGEST UTVS.
SMALL LIFT FOOTPRINT PROVIDES ADDITIONAL WORK SPACE FOR A SAFE & CLEAN WORK AREA. - PORTABLE OR FIXED PEDESTAL CONTROL STAND.
- FULLY OPERATIONAL CONTROL PANEL WITH ELECTRO-MAGNETIC LOCK RELEASE.
- HEAVY DUTY DIAMOND PLATE PLATFORM & EXTENSIONS.
- SMOOTH & QUIET 110V ELECTRIC / HYDRAULIC OPERATION – NO AIR COMPRESSOR REQUIRED.
- HIGH QUALITY CONSTRUCTION WITH DURABLE POWDER-COAT FINISH.
Features
- 24" x 88.9" Platform Size
- 43" Rise Height
- 4.75" Min. Height
- Load bearing hinged platform extensions

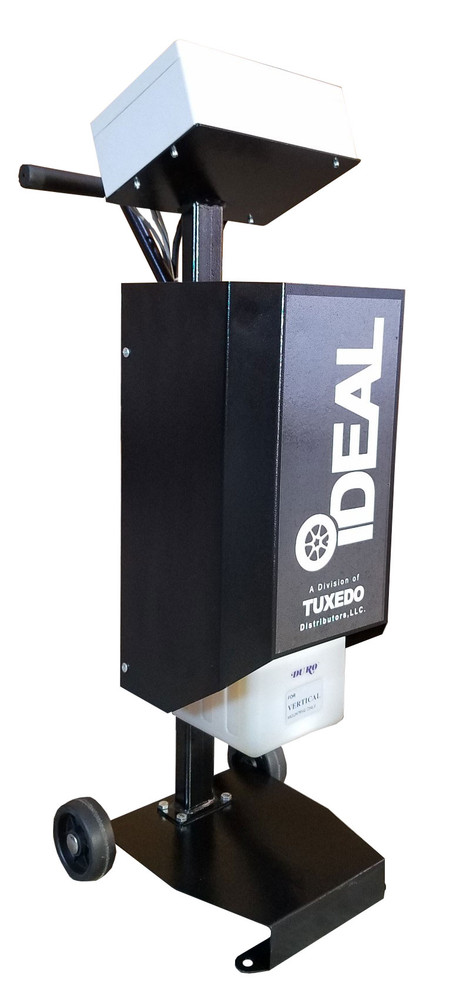

- Portable or mounted pedestal controls
- 110v integrated electric/hydraulic power unit
- Magnetic lock release
- Three locking postions
- Rubber contact lift pads - 4.75" x 6.5" (4ea)
Specifications
| Lift Model | UF-2500EH-X-BLK |
| Capacity | 2,500 lbs |
| Min. Height | 4-3/4″ |
| Max Lifting Height | 43″ |
| Overall Length w/ Ramp | 67″ – 88-7/8″ |
| Overall Width | 24″ |
| Platform Size (L x W) | 67″ x 24″ |
| Lifting Time | 25S |
| Lowering Time | 25S |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 740 lbs |
