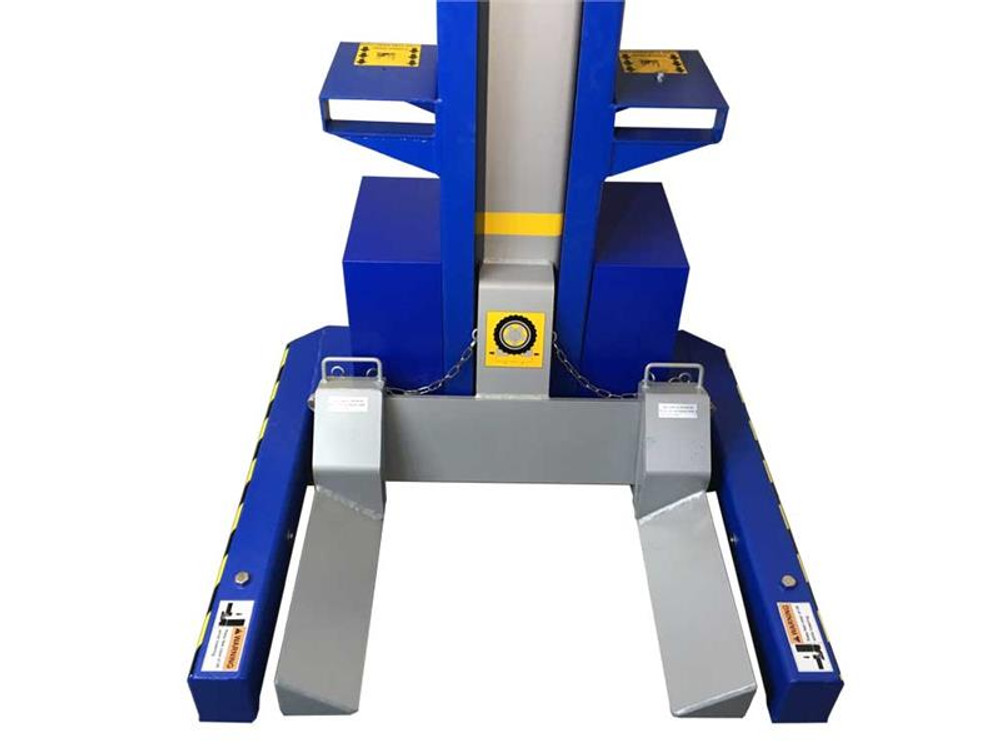

The iDEAL MSC-18K-X is ALI certified and available in sets of two, four and six columns to provide up to 108,000lbs. of liftng capacity. The MSC-18K-X is designed for the heavy duty user to lift fire trucks, school buses and other large commercial vehicles by the wheels. Optional accessories provide the flexibility to lift passenger vehicles and light trucks and wheels free lifting for expanded service. Technicians realize improved productivity through safe, simple operation of the lift at each column using the well designed control panel. The mobile design and quick set up of the MSC-18K-X allows technicians to easily transform a flat bay to a lift bay for improved use of shop space. The small foot print of the MSC-18K-X allows for storage without impacting valuable shop space.
Features
- ALI certified
- 24VDC Battery Operation with Onboard Charging System
- Communication Cable with Retractable Cable Reels
- U-Shape Wiring Configuration for quick vehicle entry & exiting
- Convenient Operation from any Column
- Independent Mechanical Locking System
- PLC & Optical Encoder provides continuous synchronization for Columns
- Easily positioned with Pallet Jack type device with Poly Caster Wheels
- Adjustable Lifting Forks for the widest range of Wheel Diameters
- Emergency Switch per each Column, provides the highest safety assurance
- Easy to use Master Control Panel for Individual or Paired Synchronized Operation
- LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
- Conveniently stored out of the way when not in use to maximize work space
- Available in Two, Four or Six Column Configurations
- LED Light with Magnetic Base (1 per two columns)
- Optional MSC ALI Certified Accessories available
- Requires hydraulic oil before use (Not included)
- Batteries NOT Included. Requires (2) 12V Deep Cycle Batteries per Column
Click here for Product Manual and Installation
Specifications
| Lift Models | MSC-18K-X-6108 |
| Column Configurations | 6 Column |
| Capacity108 | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH |
| DC Power (Output, Per Column) | 24VDC |
| Lifting Height | 67.1″ |
| Column Heights – Min/Max | Min. 88.6″ / Max. 155.5″ |
| Overall Width | 44.1″ |
| Fork Adjustable Range | 12.6″- 22″ |
| Fork Length | 17.9″ |
| Fork to Column Clearance | 10″ |
| Rise Time | 100S |
| Descent Time | 60S |
| Maximum Distance between Columns | 32′ 8″ |
| Minimum Concrete Surface Strength | 3000 PSI |
| Noise Level | 70 dB(A) |
| Set-Up / Operation | Indoors |
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
| Ship Weight | 1,584 lbs per Column |
- Lifting Capacity:
- 18,000 lbs
- Certification:
- ALI Certified
