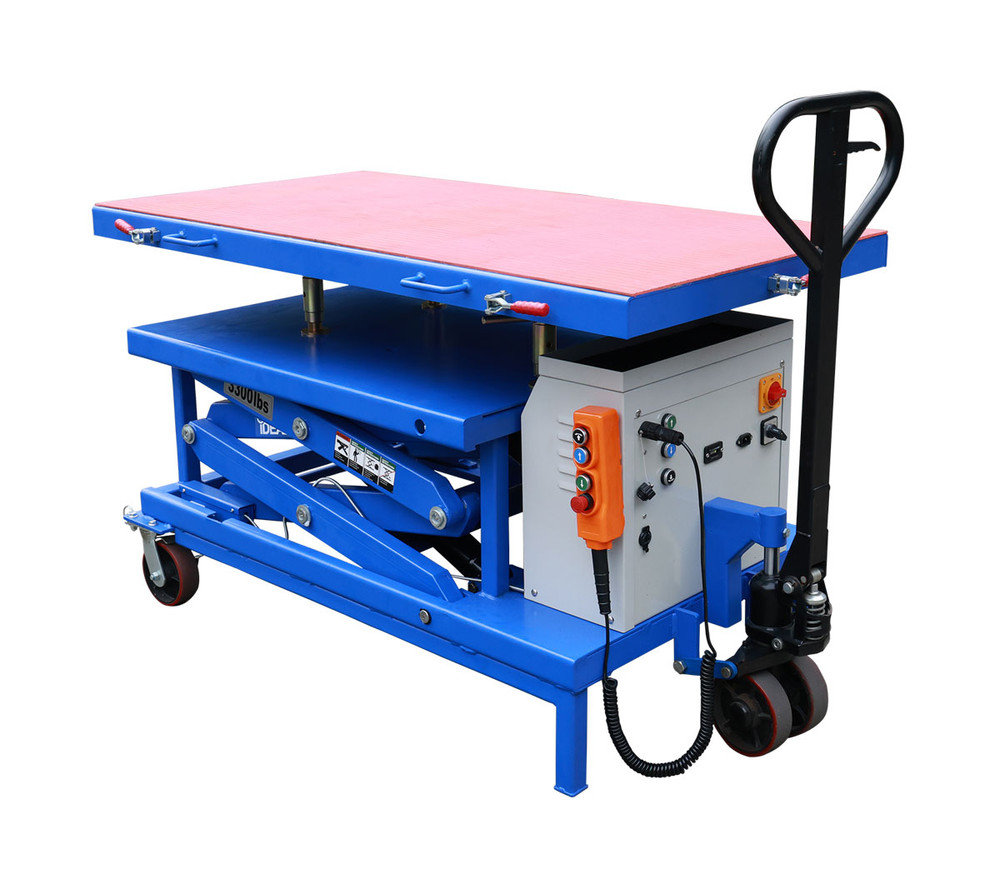

The iDEAL LT-EV3300DC-X is a 3,300 lb. portable, high-rise commercial / industrial grade 12V DC battery powered electric-hydraulic lift table, incorporating a ‘multi-adjustable’ EV platform primarily designed to assist with controlled lifting & lowering tasks to safely remove, replace or service heavy vehicle components, especially for electric & hybrid vehicles, such as EV battery packs, motors, powertrain assemblies, or other similar heavy components. The LT-EV3300DC-X comes standardly equipped with a durable EV insulated platform that includes a multi-directional ‘sliding’ platform with latch clamps, along with tilt & height adjustments, while also incorporating a fully operational remote hand controller & control box panel buttons for dual control function operations. Also included is a high quality deep-cycle 12V DC sealed battery, integrated battery charger and 12V DC auxiliary outlet port. In addition, the iDEAL EV 3300 lb. lift table comes standard with a pallet jack dolly with poly casters, leg support stands, front locking swivel & directional poly casters, utility / tool tray, double lift scissors, powerful DC electric motor, dual hydraulic cylinders and four rubber pads. Optional 12V DC LED Spot Light with magnetic base also available.
- 3,300 lbs capacity
- Innovative, high quality portable scissor lift design
- Efficent & Safe method to install or remove heavy EV or Hybrid vehicle components (Battery Packs, Motors & Powertrain Assemblies)
- Dual DC electrical operation using control panel or magnetic hand control buttons for ease of lifting, locking & lowering
- 12V DC battery operation w/integrated 110v battery charger
- Insulated, multi-directional sliding EV platform w/adjustable latch clamps
- HD Jack screws for precision 'Tilt & Height' Platform adjustments
- Double scissor HD design w/HQ Hydraulic cylinder
- Integrated utility/tool tray & sub-platform storage area
- Portability ease with pallet jack operation w/6" poly wheels
- Durable 'directional & locking' 6" front poly swivel casters
- EV platform size 59'L x 31.5"W
- 3 each locking height postions
- Max PT Platform height: 72.6"
- Min PT Platform height: 35.4"
- Overall size 67.3"L x 35.4"W
- 20 second rise & 22 second lower time
- Includes 12V DC battery & 4 each rubber pads (6.4"L x 4"W x 1.45"H)
- Durable powder-coat finish
