The iDEAL FR-77T Series Tilt Deck Tubular Frame Rack is available in both 18’ and 20’ configurations. The FR-77T series is manufactured using high quality steel tubing and provides 7,700lbs. capacity. The FR-77T accommodates full frame and unibody vehicles. Two 10 Ton towers enable 360 degree clear floor pulling using multiple tie down hole locations and universal anchoring system with adjustable height clamping assemblies. The FR-77T Series comes with Pull Chains and Hooks, Overhead Boom / Pull Tower Extension, Universal Wheel Stands and Vehicle Dollies.
Features
- Tilt Deck Operation with 7,700lbs. Capacity with Drive On Ramps
- Durable, Heavy Duty Tubular Construction

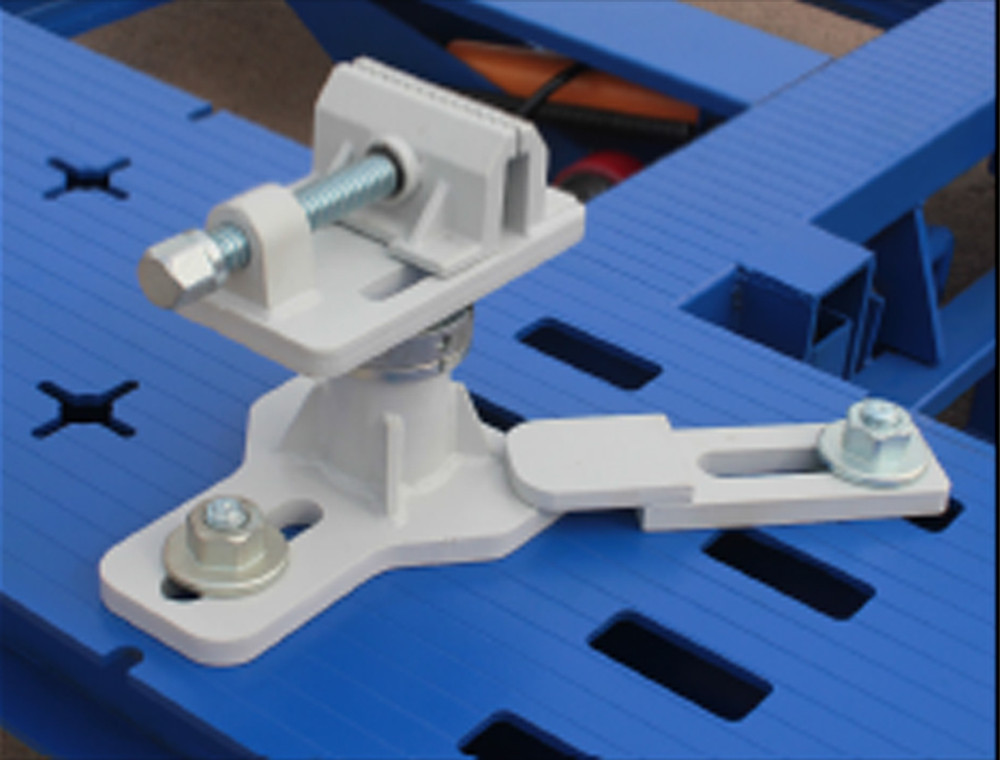

- Universal Anchoring System with Adjustable Height Pinch Weld Assemblies
- Two – 10 Ton Pulling Towers with Telescoping Heads
- Adjustable Tower Collars
- Overhead Boom Pull Tower Extension
- Quick Disconnect Hydraulic Fittings
- Two – 10′ Pulling Chains with Hooks
- Two – High Quality Air/Hydraulic Pumps with Pressure Gauges
- Universal Wheel Stand And Dead Vehicle Dolly
- Powder Coat Finish
Specifications
| Deck Length | 20′ |
| Deck Width | 82.6″ |
| Deck Height | 19.7″ |
| Pull Force Per Tower | 10 Ton |
| Hydraulic Pressure | 10,000 PSI |
| Required Air Pressure | 100 – 120 PSI |
| Lifting Capacity | 7,700 lbs. |
| Shipping Weight | 5,300lbs. |
