Introducing the EW10, our 10,000 lbs. hydraulic, inground lift revolutionizing the automotive service industry. Designed to cater to service centers’ evolving needs, the EW10 offers an extra-wide drive-through clearance, which allows the lowering of batteries out of electric vehicles while not losing the function of a conventional inground cassette, making it an indispensable tool for service centers specializing in EV maintenance.

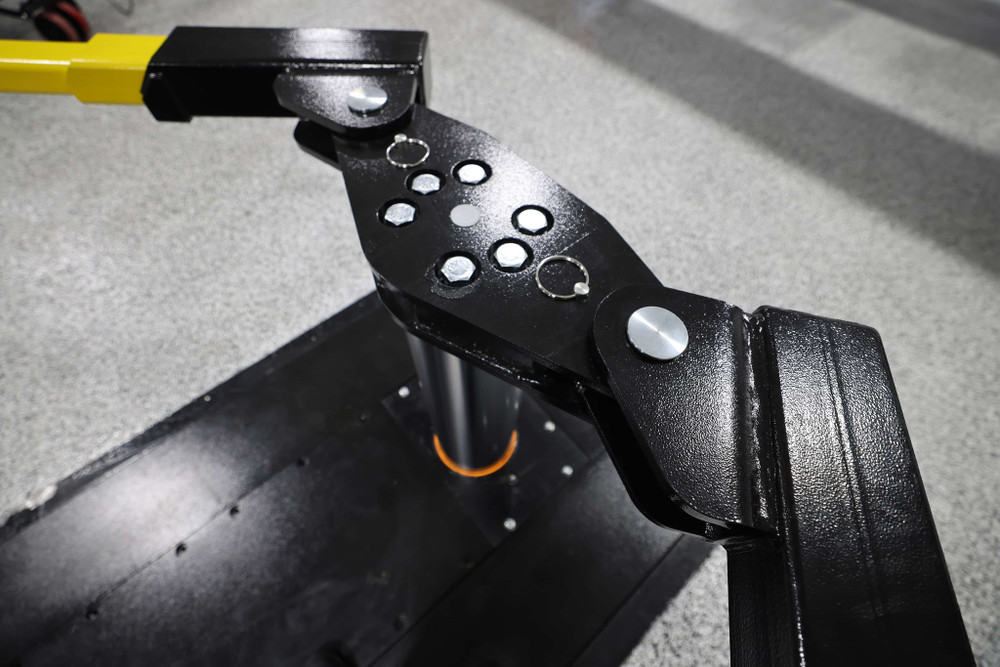

The lift’s 3-stage arms and double-telescoping screw pads ensure precise positioning while spotting vehicles. The EW10 is ideally suited for some of the widest cars currently on the market, such as modern Electric Vehicles and Luxury cars with specific pick-up points. This versatility makes it ideal for service centers looking to expand their capabilities and cater to a diverse and evolving automotive market.
The EW10 offers Bench-Mount Controls (BMC) by button or lever as an optional feature. BMC mounts the controls inside a workbench for a cleaner aesthetic look and facilitates more effortless lift operation and control, enhancing technician comfort and productivity.
Upgrade your service center with the EW10 and take your capabilities to the next level.
- 3-Stage Front & Rear Arms
- No Bolster to Drive Over
- Easier install thanks to only needing one concrete pour instead of the current three
| Model Number | EW1020 |
|---|---|
| Lifting Capacity | 10,000 lbs. |
| Capacity per Arm | 2,500 lbs. |
| Arms | 3-stage front/3-stage rear |
| Screw Pad Height | 4” - 6.125” |
| Arm Reach | 20" - 42" |
| Stroke | 72” |
| Rise Height | 78” |
| Drive-Thru Clearance | 88” |
| Width Overall | 118" |
| Speed of Rise | 41 s |
| Air Required | 90 - 120 psi |
| Super Structure Colors | Black, Red or Blue |
| Motor / Voltage | 2HP, 208v-230v, 60Hz, 1Ph |
| ALI/ETL Certified | Yes |
