Challenger CLHM-190 19,000 lb. ALI Certified Wireless Mobile Column Lift (Set of 2)

$28,186.00
Free_shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
#CLHM-190-2
Availability:
Usually ships in 5-10 Business Days

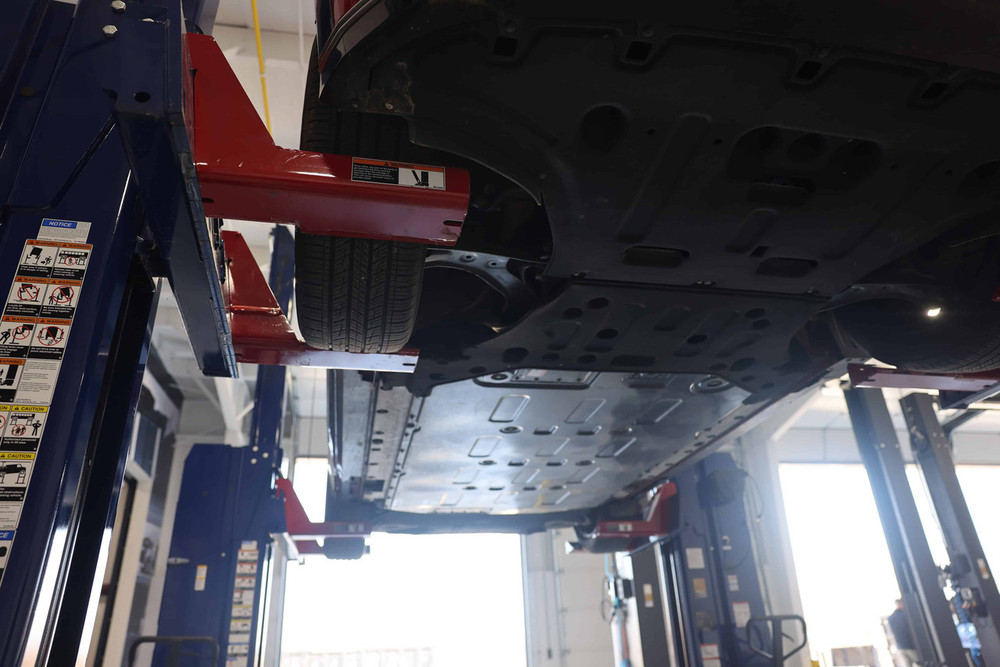

Challenger’s CLHM Series heavy-duty mobile lifting system provides the perfect balance of strength and maneuverability, making it ideal for use on any solid surface, whether indoors or outdoors. With the ability to lift vehicles weighing up to 152,000 pounds (with eight units connected), including oversized 2-, 3-, or 4-axle vehicles, these mobile lifts offer unmatched flexibility.

Additionally, with no cables to connect each column, they effortlessly lift vehicles of any axle length or wheelbase. These heavy-duty mobile lifts are available in 14,000 lbs. or 19,000 lbs. capacity and are versatile for various vehicle lifting needs.

  • 14,000 lb. or 19,000 lb. capacity columns
  • Hydraulic operated units provide 28,000/38,000 (set of 2) or 112,000/152,000 lbs. (set of 8) lifting capacity
  • 110-volt built-in multi-stage charging system
  • Wireless system for clutter-free work area without cables to connect, navigate, roll-over or replace
  • Adjustable wheel carriage adapts to most tire sizes
  • 12 radio frequencies with a wide channel range prevents radio noise from interrupting service
  • Linear position transducers maintain system synchronization and ensure maximum reliability

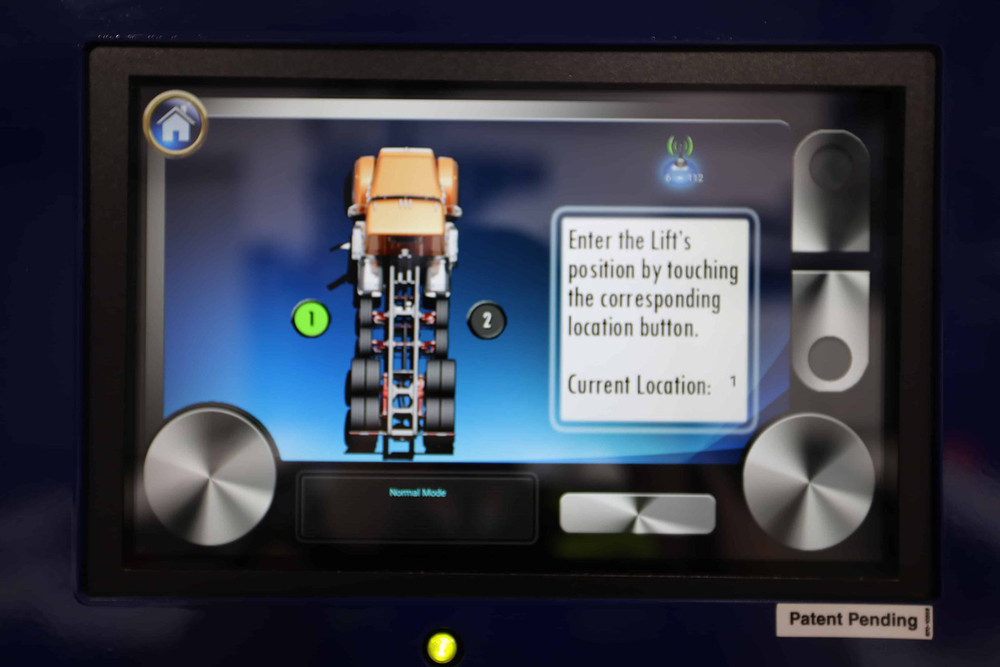

  • Integrated touch screen control console at each column allows operation from any unit

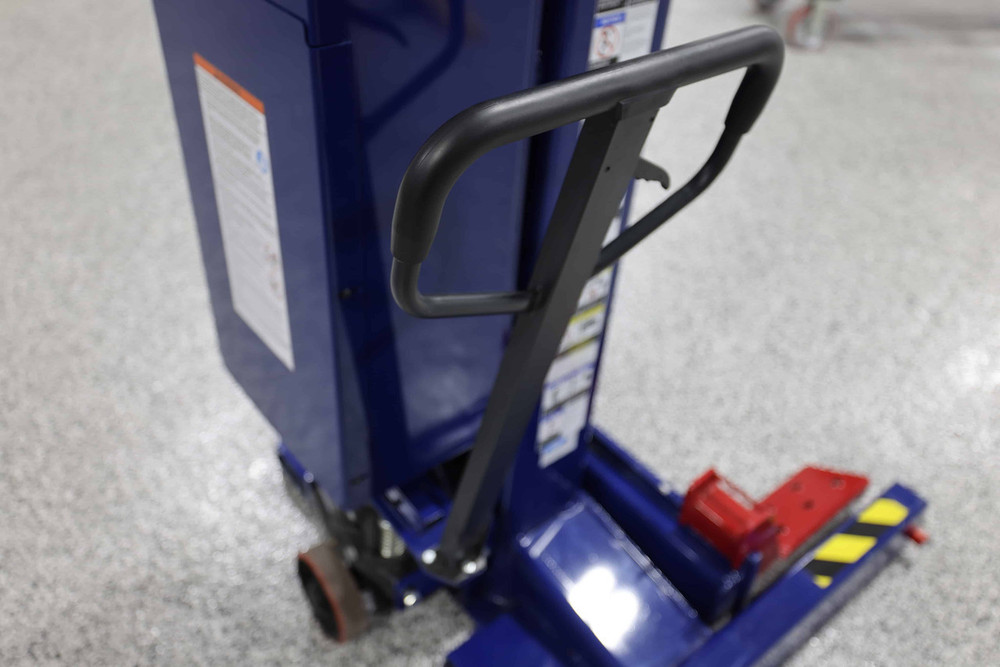

  • Precise balanced design, heavy-duty tow handle and spring-loaded wheels for easy mobility
  • Operates with 12-volt deep cycle batteries eliminating the need for power source hookups and providing 24-volt operation
  • Integrated weight gauges help prevent column overloading and verify lock engagement
  • Wide range of accessories available to further customize your columns to lift specialty heavy-duty trucks, transit and municipality vehicles, forklifts, cab removal of standard pickup trucks and more
Model Number CLHM-190
Lifting Capacity Per Column 19,000 lbs.
Height of Lift Unit 88.5"
Height of Lift Unit at Full Rise 157.125"
Width of Lift Unit 44.25"
Length of Lift Unit 53.625"
Maximum Lift Height (4 or more units) 69"
Maximum Lift Height (2 units - Normal Mode) 32"
Min-Max Wheel Diameter 5" - 24.5"
Max. Hydraulic System Operating Pressure 2,600 psi
Lift Speed (Max Load) 60" per min.
Weight of Lift Unit 1,510 lbs
Footprint of Lift Unit 560 sq. in.
Ground Pressure for each Lift (Max. Load) 36.6 psi
Turning Radius of Lift Unit 47"
Operating Peak Power 4HP
Operating Voltage 25 VDC nominal
Charger Voltage Required 120 VAC @ 60 Hz
Charger Amps Required 1.3 Amps
ALI/ETL Certified Yes
Colors Available Blue
Free_shipping:
Free Shipping
Certification:
ALI Certified
Lifting Capacity:
19,000 lbs
